Anechoic chamber 2 (3m)

For Consumer products standards

A 3m anechoic chamber is designed for each test according to VCCI,CISPR,EN etc.
Equipped with a turntable of 2m diameter with the maximum load of 0.5t.

Facility specifications
Reservation status
Contact

Facility specifications of Anechoic chamber 2 (3m)

Dimensions	Power supply capacities (voltage and current)	Note
5.4×8.3×5.2 (H) m Door dimensions: 2.0 (W)×2.0 (H) m	AC single-phase 2-wire: 1–300V (50/60Hz, 9kVA) AC three-phase 3 and 4-wire: 1–480V (50/60Hz, 9kVA) AC single-phase 3-wire: 100/200V (50/60Hz, 6kVA) DC: 1–100V (55A), –420V (12A)	Turntable：Diameter 2m Max. load weight 0.5t

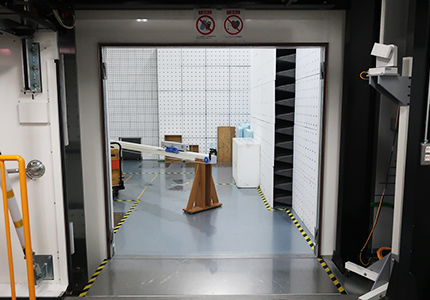

Carry-in entrance

Reservation status for Anechoic chamber 2 (3m)

For detailed measurement types and items, please fill the form below and send us, or contact us at
TEL +81-568-88-7999.

The reservation status can be checked at our Google Calendar.
Please use other browsers than “Internet Explorer”, since it does not support the Google Calendar.
