CERACOLD CECD
Feature
Better thermal emissivity compared with aluminum. Heat dissipation is enhanced by the larger surface area of the porous ceramic.
Approx. 30% lighter than aluminum heat sinks
No EM wave radiation from the heat sink, unlike metal heat sinks
Operating temperature range is from -40℃ to 125℃.
- Silicone-free
- High thermal conductivity
- One side tacky
- Heat disimpassion material
Materials
Specification
List （代表値）
| Material | Silicone-free | Feature | Electromagnetic wave countermeasure, One side tacky, Heat dissipating material |
|---|---|---|---|
| Color | Green | Specific gravity | 1.95 |
| Volume resistivity(Ω・cm) | ≧108 | Tracking resistance test CTI(V) | >- |
| Hardness(ASKER C) | - | Hardness(Shore OO) | - |
| Hardness(Shore A) | - | Thermal conductivity(Hot wire method)(W / m・K) | 11.5 |
| Thermal conductivity(Hot Disk method)(W / m・K) | - | Phase change temperature(℃) | - |
| Permeability(μ') | - | Maximum effective dimensions(mm) | - |
Different part number may have different characteristics. Please refer to the catalog for details.
Please refer to the catalog for thermal conductivity standards.
The thermal pad can be layered to make it thicker.

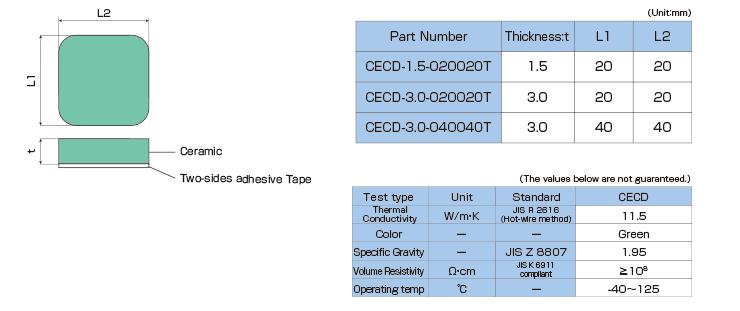

Part No. list
| Part No. | Thickness (mm) |
L1 (mm) |
L2 (mm) |
Flame retardance (UL) |
図面・3Dデータ・成績書 | Sample Request |
|---|---|---|---|---|---|---|
| CECD-1.5-020020T | 1.5 | 20 | 20 | - | ||
| CECD-3.0-020020T | 3.0 | 20 | 20 | - | ||
| CECD-3.0-040040T | 3.0 | 40 | 40 | - |
