RE-USE CLAMP RBWS-E-F
Releasable fluoro resin clamp
Feature
The use of Fluoro resin material has excellent heat resistance and cold resistance. And therefore ideal for use in Outdoors, food rocessing machinery, medical equipment.
The lock, the snap malfunction prevention structure that does not come off easily.
- Cable clamp
Specification
List （代表値）
| Mounting methods | Reusable snap, (Hole diameterΦ3.5+0.2、Φ4.8+0.2) | Flammability | UL94V-0 recognized product |
|---|---|---|---|
| Cable mounting direction | From top | Feature | Releasable fluoro resin clamp,With lock mechanism |
Different part number may have different characteristics. Please refer to the catalog for details.

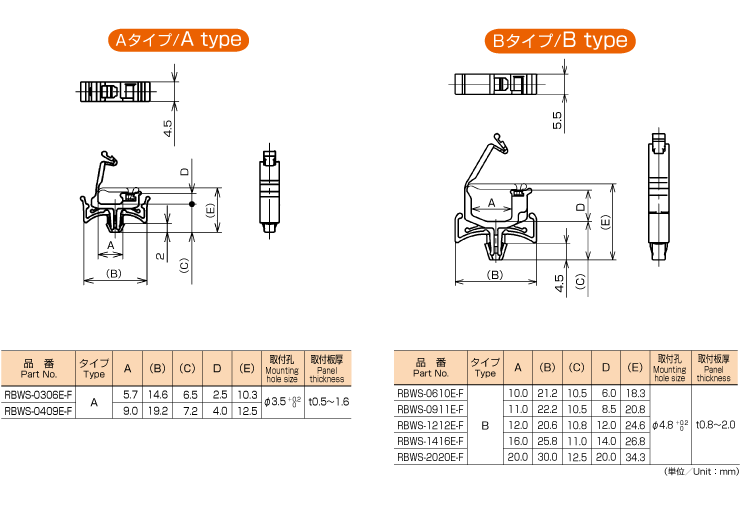

Part No. list
| Part No. | Width(Outer diameter) (mm) |
Height(Outer diameter) (mm) |
Panel thickness (mm) |
図面・3Dデータ・成績書 | Sample Request |
|---|---|---|---|---|---|
| RBWS-0306E-F | 14.6 | 7.8 | 0.5 ~ 1.6 | ||
| RBWS-0409E-F | 19.2 | 10 | 0.5 ~ 1.6 | ||
| RBWS-0610E-F | 21.2 | 13 | 0.8 ~ 2.0 | ||
| RBWS-0911E-F | 22.2 | 15.5 | 0.8 ~ 2.0 | ||
| RBWS-1212E-F | 20.6 | 19.3 | 0.8 ~ 2.0 | ||
| RBWS-1416E-F | 25.8 | 21.5 | 0.8 ~ 2.0 | ||
| RBWS-2020E-F | 30 | 29 | 0.8 ~ 2.0 |
Product Inquiry
Please send us your inquiry from the query system regarding product and technical matter about it.
Suggestion of selection guide of expected Cable Clamp (Re-use Clamp) is also available.
