Plastic Fasteners
Cable clamps (reusable)
Cable clamps (reusable)
RE-USE CLAMP RLWS-S
Reusable type
Feature
Snap mounting provides easy maintenance and disassembling with no tools required.
Both twist type and push type are available for easy dismount.
- Cable clamp
Specification
List （代表値）
| Mounting methods | Reusable snap, (Hole diameter φ4.8 +0.1 0) | Flammability | UL94V-0 recognized product |
|---|---|---|---|
| Cable mounting direction | From top | Feature | With lock mechanism, UL1565 recognized product |
Different part number may have different characteristics. Please refer to the catalog for details.

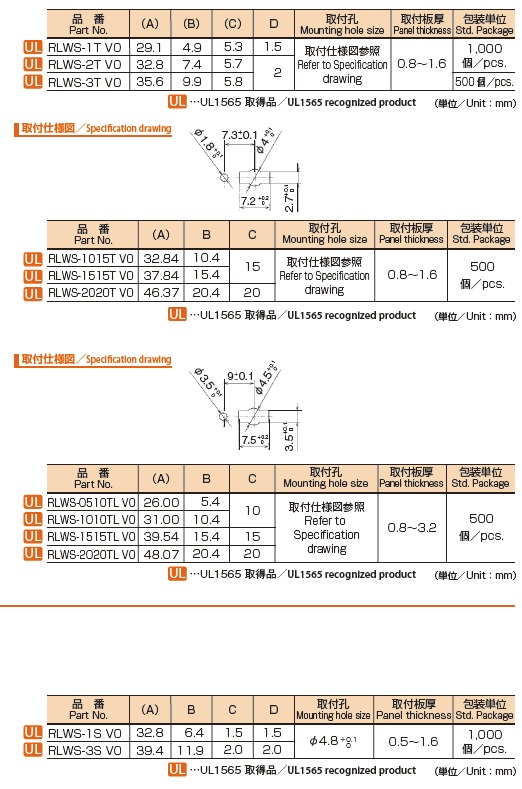

Part No. list
| Part No. | Width(Outer diameter) (mm) |
Height(Outer diameter) (mm) |
Panel thickness (mm) |
図面・3Dデータ・成績書 | Sample Request |
|---|---|---|---|---|---|
| RLWS-1S V0 | 17.5 | 11.3 | 0.5 ~ 1.6 | ||
| RLWS-3S V0 | 18.6 | 16.8 | 0.5 ~ 1.6 |
Product Inquiry
Please send us your inquiry from the query system regarding product and technical matter about it.
Suggestion of selection guide of expected Cable Clamp (Re-use Clamp) is also available.
