Vibration, Shock & Sound Damping Materials
Sheets
Sheets
KG-GEL 80TW SHEET TWG80
Feature
Extremely low-hardness material provides excellent shock damping for equipment and components, from low frequencies upwards
The KG-GEL can be mold-injected to required forms.
Uses silicone free material, no siloxane outgassing
Effective to shift the resonance frequency to a lower frequency for damping vibrations
- Lowered resonance frequency
- Shock & vibration damping
Materials
Specification
List （代表値）
Different part number may have different characteristics. Please refer to the catalog for details.

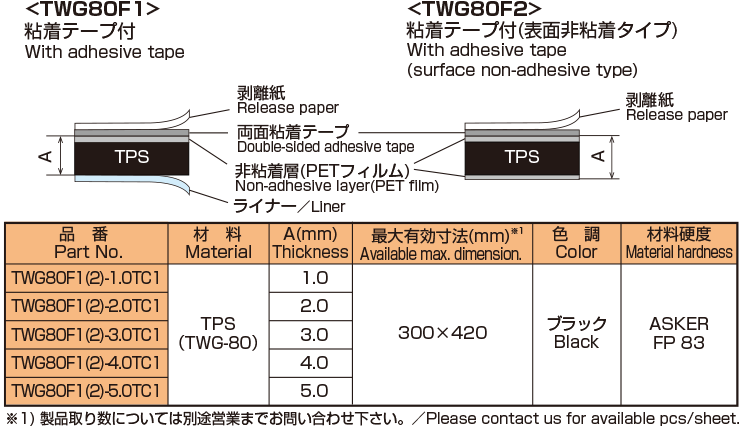

Part No. list
| Part No. | Thickness(mm) | 図面・3Dデータ・成績書 | Sample Request |
|---|---|---|---|
| TWG80F1-1.0TC1 | 1 | ||
| TWG80F1-2.0TC1 | 2 | ||
| TWG80F1-3.0TC1 | 3 | ||
| TWG80F1-4.0TC1 | 4 | ||
| TWG80F1-5.0TC1 | 5 | ||
| TWG80F2-1.0TC1 | 1 | ||
| TWG80F2-2.0TC1 | 2 | ||
| TWG80F2-3.0TC1 | 3 | ||
| TWG80F2-4.0TC1 | 4 | ||
| TWG80F2-5.0TC1 | 5 |
Product Inquiry
Please send us your inquiry from the query system regarding product and technical matter about it.
Suggestion of selection guide of expected Vibration Damping, Shock Absorbing or Sound Damping Product is also available.
